Description

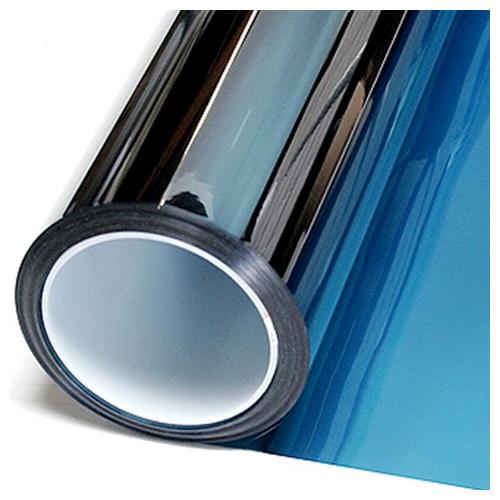

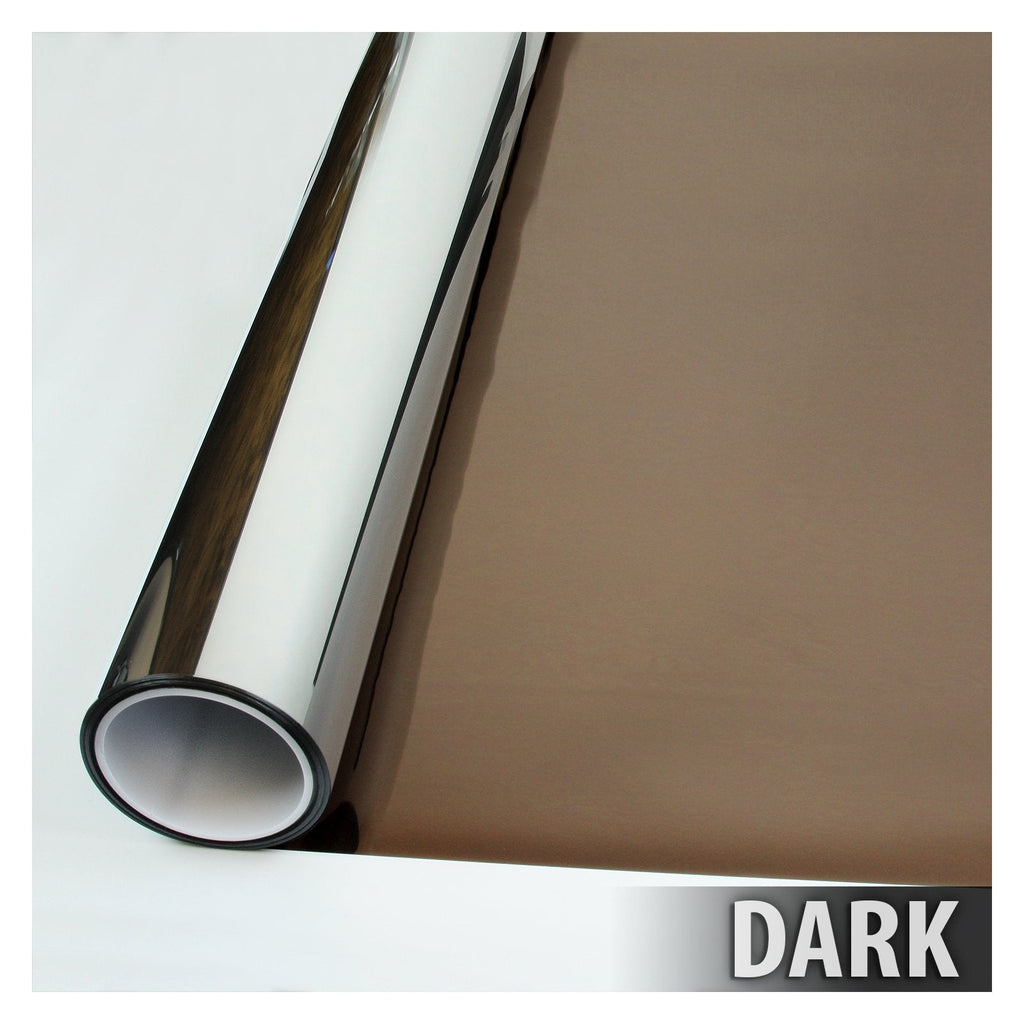

The Dual Reflective DR series is produced by combining premium deep dyed film with an aluminum metalized finish. The result is a unique film that creates an effect with color on the outside and a reflective silver mirror on the inside.

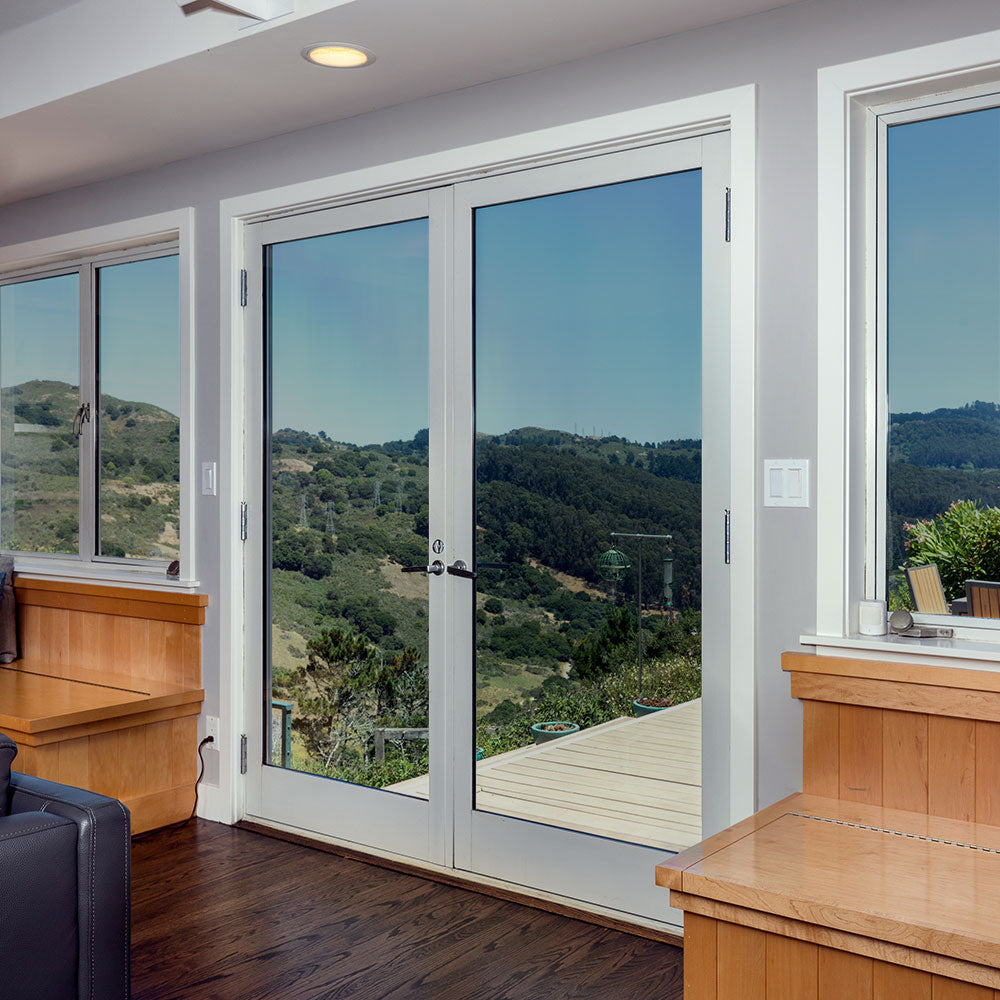

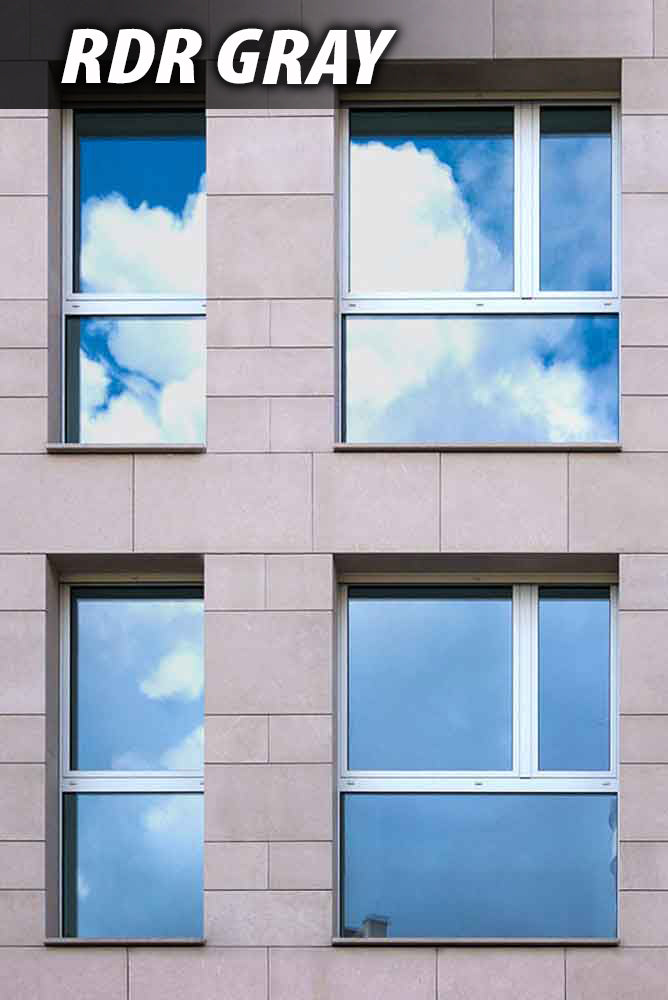

The RDR Gray has a reflective silver look on the outside and a gray on the inside.
- Available in Blue, Green, Bronze, Gold, Gray, and RDR Gray
- Moderate Reflectivity
- Excellent Heat Rejection
- 99% UV Rejection
- 5 Year Limited Warranty
| PRODUCT | TST | TSR | TSA | VLT | VLR | SC | UVR | SHGC | TSER |
|---|---|---|---|---|---|---|---|---|---|

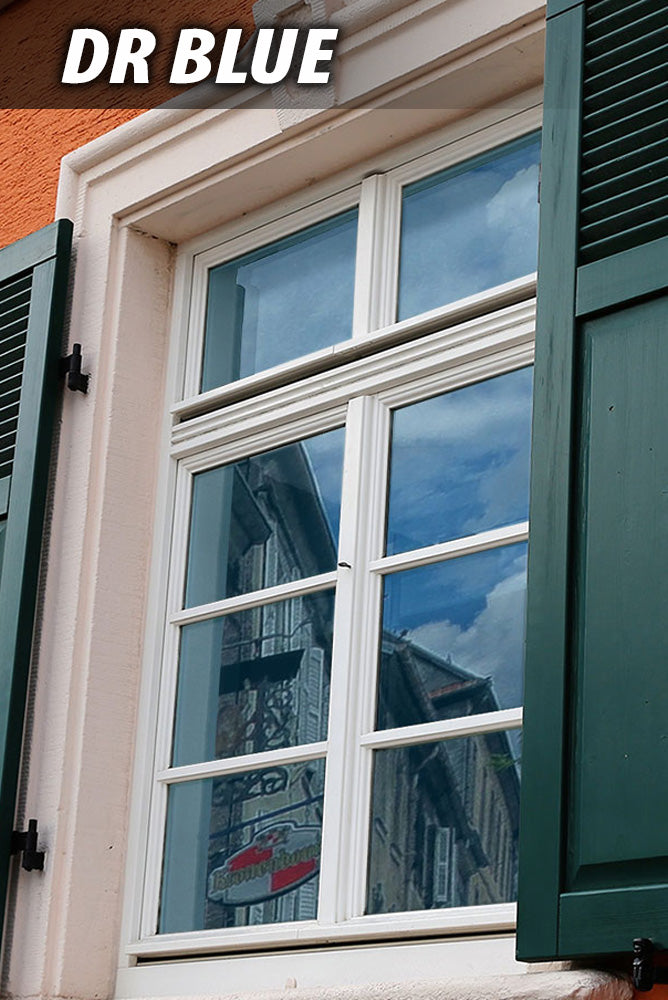

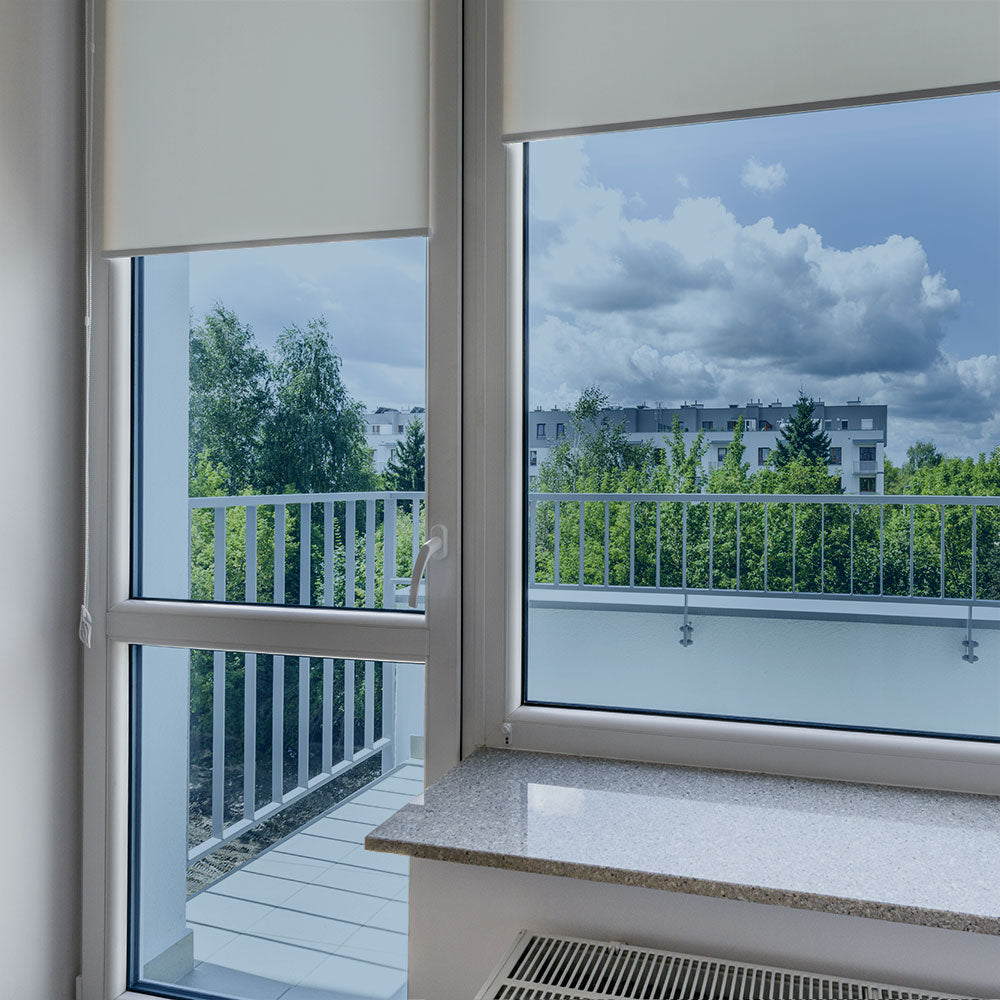

| DR Blue | 13 | 49 | 38 | 13 | 26 | 0.25 | 99 | 0.21 | 79 |

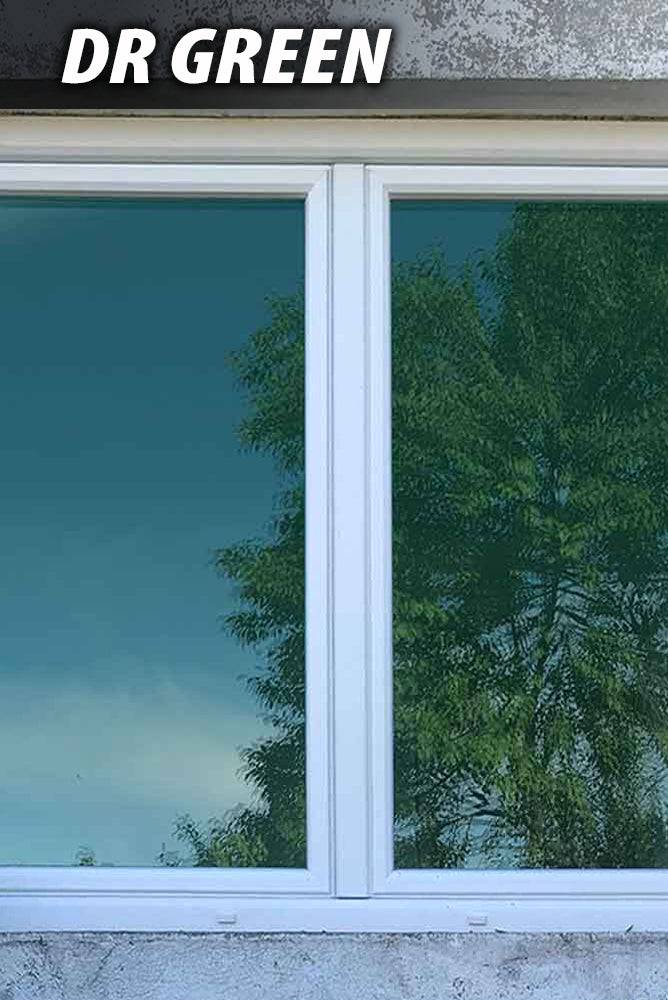

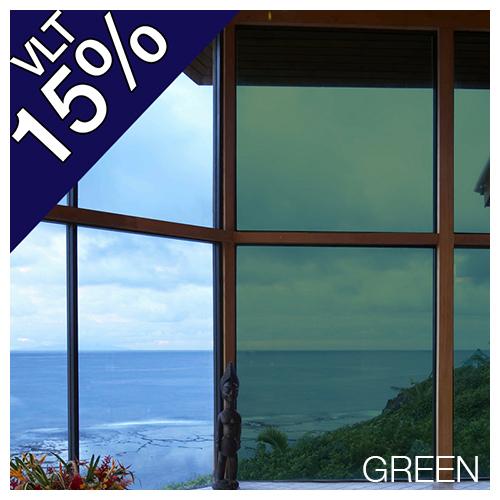

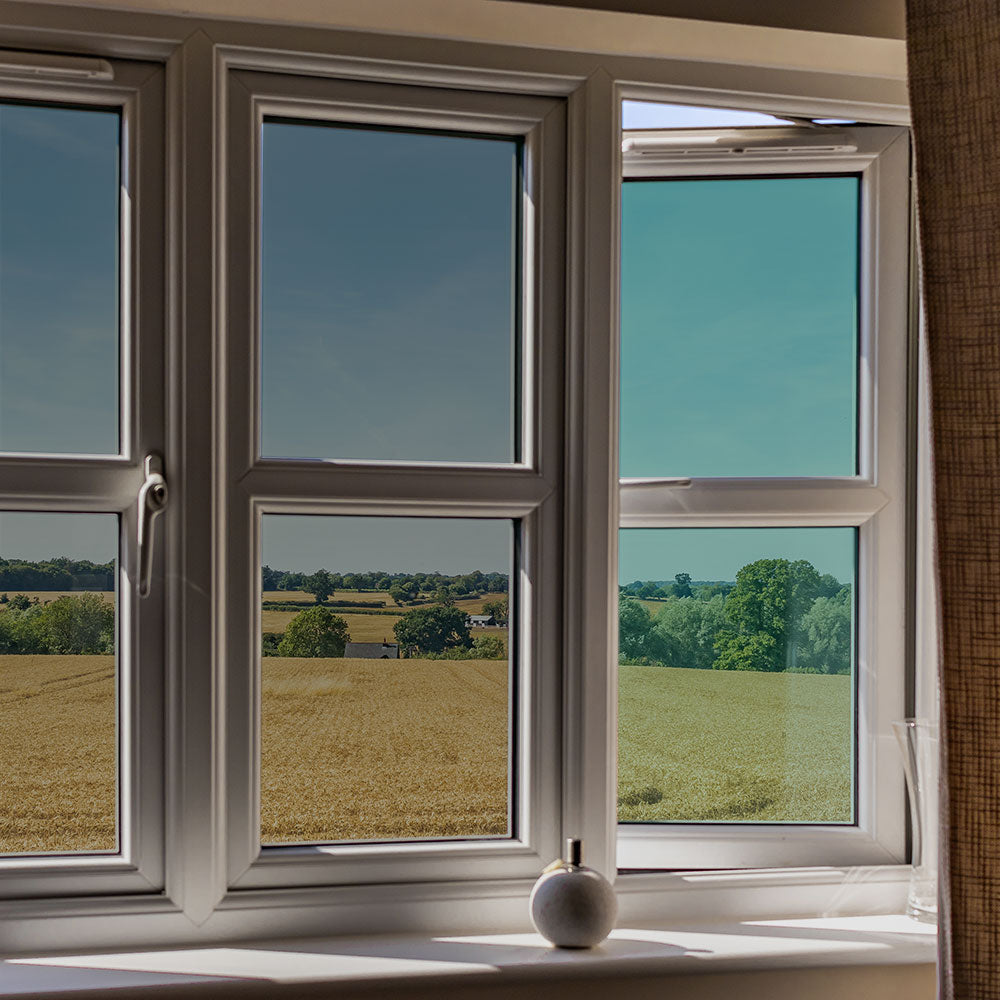

| DR Green | 15 | 38 | 47 | 15 | 22 | 0.30 | 99 | 0.26 | 74 |

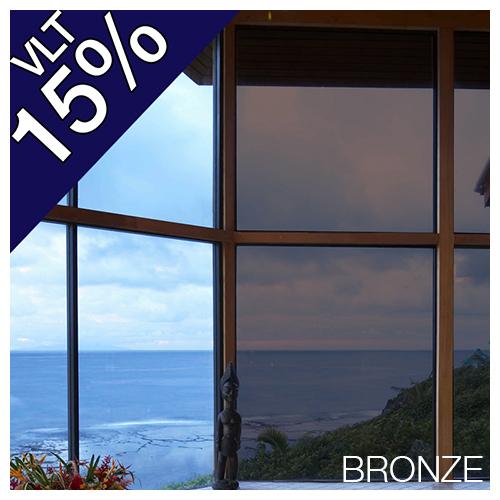

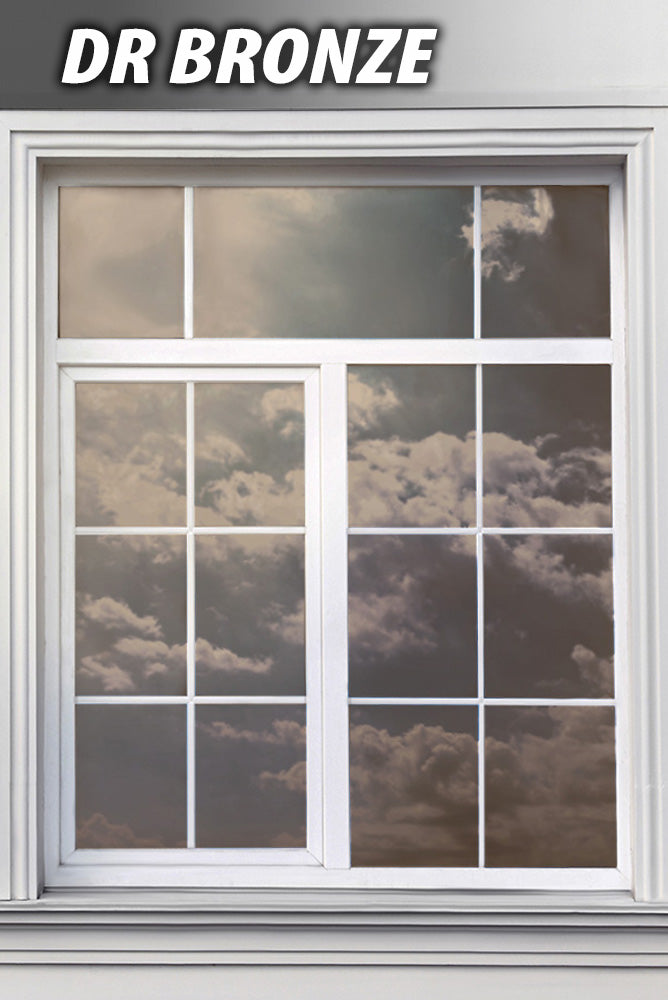

| DR Bronze | 12 | 42 | 46 | 10 | 21 | 0.26 | 99 | 0.23 | 77 |

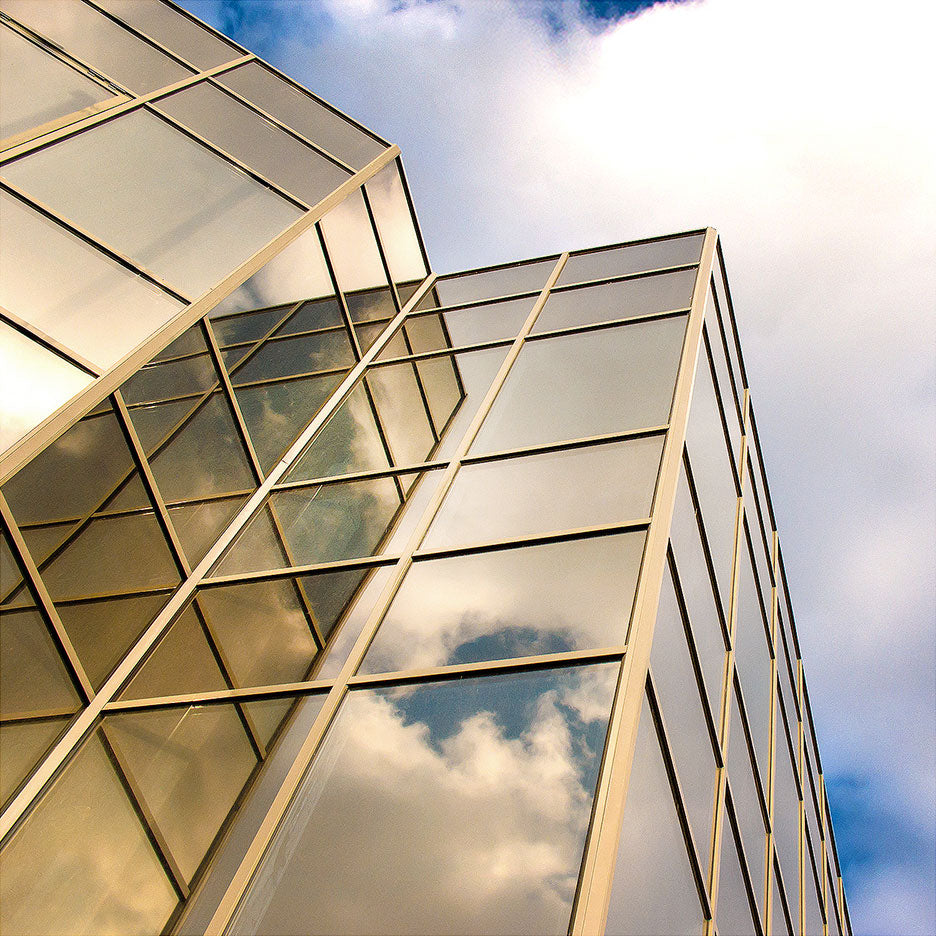

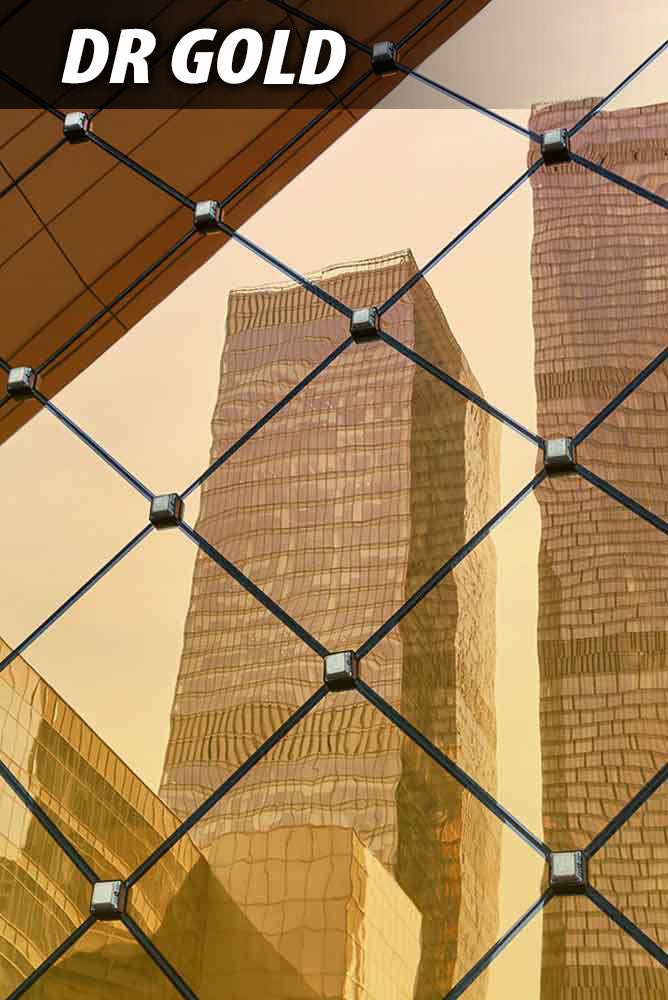

| DR Gold | 16 | 52 | 32 | 19 | 44 | 0.26 | 99 | 0.23 | 77 |

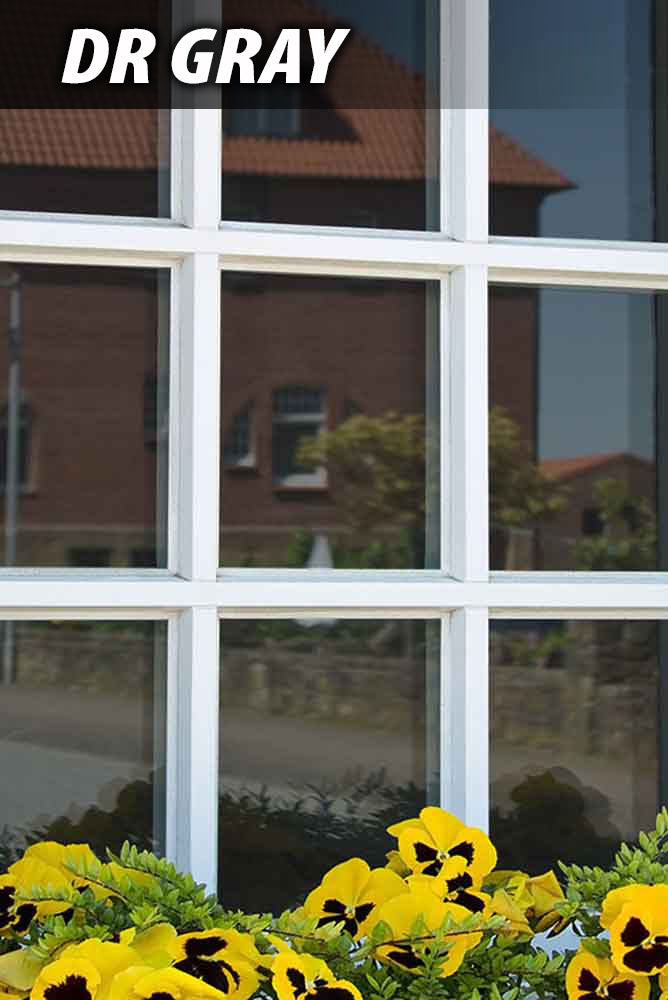

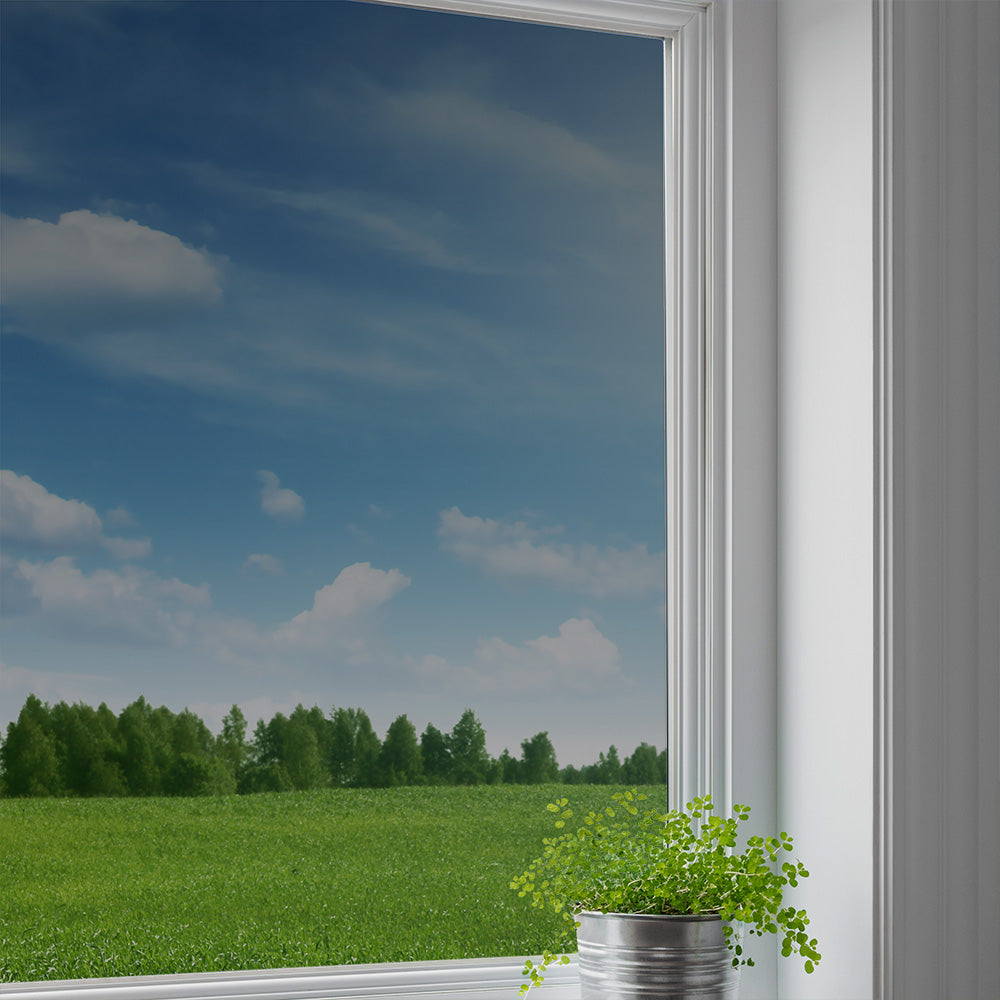

| DR Gray | 12 | 35 | 53 | 9 | 14 | 0.28 | 99 | 0.23 | 75 |
- TST: Total Solar Transmittance
- TSR: Total Solar Reflectance
- TSA: Total Solar Absorptance
- VLT: Visible Light Transmission
- VLR: Visible Light Reflectance
- SC: Shading Coefficient
- UVR: Ultraviolet (UV) Rejection
- SHGC: Solar Heat Gain Coefficient
- TSER: Total Solar Energy Rejection
* All data values are representative and expressed for comparison purposes only.
